include/analogy/channel_range.h File Reference

Detailed Description

Analogy for Linux, channel, range related features.

Xenomai is free software; you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation; either version 2 of the License, or (at your option) any later version.

Xenomai is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details.

You should have received a copy of the GNU General Public License along with Xenomai; if not, write to the Free Software Foundation, Inc., 59 Temple Place - Suite 330, Boston, MA 02111-1307, USA.

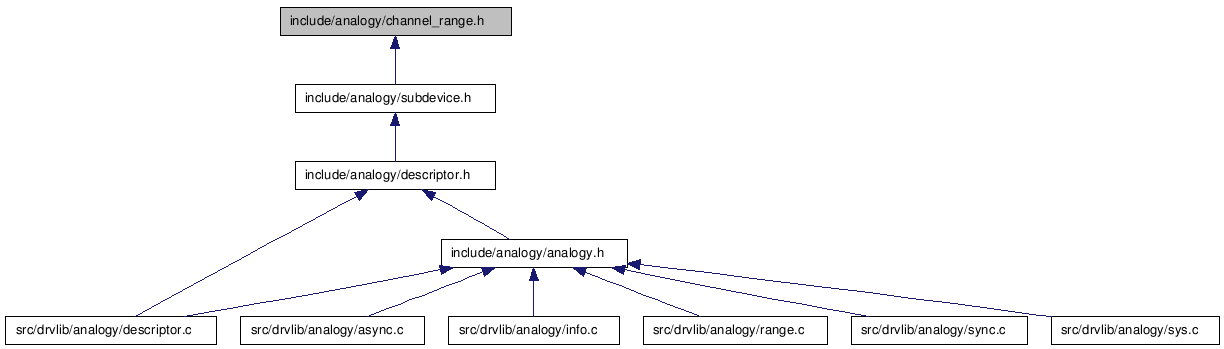

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures

struct a4l_channel

Structure describing some channel's characteristics. More...

struct a4l_channels_desc

Structure describing a channels set. More...

struct a4l_range

Structure describing a (unique) range. More...

Defines

#define A4L_CHAN_GLOBAL   0x10

Internal use flag (must not be used by driver developer).

#define A4L_RNG_FACTOR   1000000

Constant for internal use only (must not be used by driver developer).

#define A4L_RNG_VOLT_UNIT   0x0

Volt unit range flag.

#define A4L_RNG_MAMP_UNIT   0x1

MilliAmpere unit range flag.

#define A4L_RNG_NO_UNIT   0x2

No unit range flag.

#define A4L_RNG_EXT_UNIT   0x4

External unit range flag.

#define A4L_RNG_UNIT(x)

Macro to retrieve the range unit from the range flags.

#define A4L_RNG_GLOBAL   0x8

Internal use flag (must not be used by driver developer).

#define RANGE(x, y)

Macro to declare a (unique) range with no unit defined.

#define RANGE_V(x, y)

Macro to declare a (unique) range in Volt.

#define RANGE_mA(x, y)

Macro to declare a (unique) range in milliAmpere.

#define RANGE_ext(x, y)

Macro to declare a (unique) range in some external reference.

#define A4L_RNG_GLOBAL_RNGDESC   0

Constant to define a ranges descriptor as global (inter-channel).

#define A4L_RNG_PERCHAN_RNGDESC   1

Constant to define a ranges descriptor as specific for a channel.

#define RNG_GLOBAL(x)

Macro to declare a ranges global descriptor in one line.

Channel reference

Flags to define the channel's reference

#define A4L_CHAN_AREF_GROUND   0x1

Ground reference.

#define A4L_CHAN_AREF_COMMON   0x2

Common reference.

#define A4L_CHAN_AREF_DIFF   0x4

Differential reference.

#define A4L_CHAN_AREF_OTHER   0x8

Misc reference.

Channels declaration mode

Constant to define whether the channels in a descriptor are identical

#define A4L_CHAN_GLOBAL_CHANDESC   0

Global declaration, the set contains channels with similar characteristics.

#define A4L_CHAN_PERCHAN_CHANDESC   1

Per channel declaration, the decriptor gathers differents channels.
