include/analogy/command.h File Reference

Detailed Description

Analogy for Linux, driver facilities.

Note:: Copyright (C) 1997-2000 David A. Schleef <ds@schleef.org>
Copyright (C) 2008 Alexis Berlemont <alexis.berlemont@free.fr>

Xenomai is free software; you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation; either version 2 of the License, or (at your option) any later version.

Xenomai is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details.

You should have received a copy of the GNU General Public License along with Xenomai; if not, write to the Free Software Foundation, Inc., 59 Temple Place - Suite 330, Boston, MA 02111-1307, USA.

Include dependency graph for command.h:

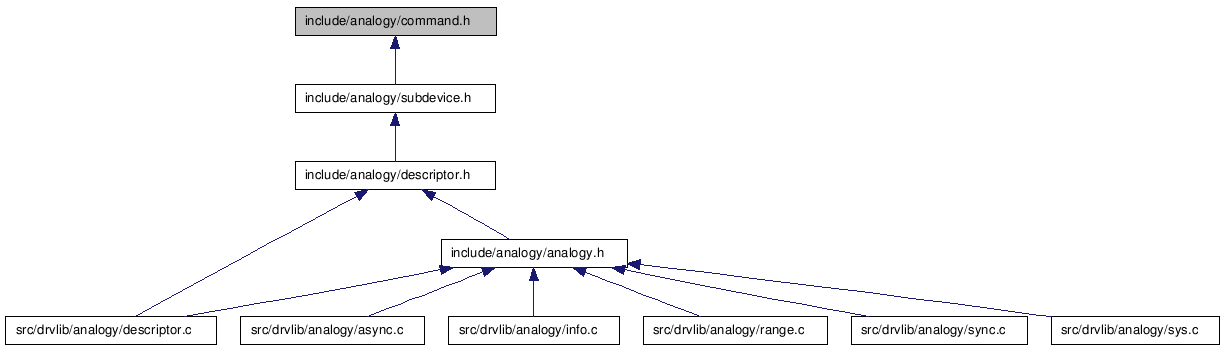

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures

struct a4l_cmd_desc

Structure describing the asynchronous instruction. More...

Defines

ANALOGY_CMD_xxx

Common command flags definitions

#define A4L_CMD_SIMUL   0x1

Do not execute the command, just check it.

#define A4L_CMD_BULK   0x2

Perform data recovery / transmission in bulk mode.

#define A4L_CMD_WRITE   0x4

Perform a command which will write data to the device.

TRIG_xxx

Command triggers flags definitions

#define TRIG_NONE   0x00000001

Never trigger.

#define TRIG_NOW   0x00000002

Trigger now + N ns.

#define TRIG_FOLLOW   0x00000004

Trigger on next lower level trig.

#define TRIG_TIME   0x00000008

Trigger at time N ns.

#define TRIG_TIMER   0x00000010

Trigger at rate N ns.

#define TRIG_COUNT   0x00000020

Trigger when count reaches N.

#define TRIG_EXT   0x00000040

Trigger on external signal N.

#define TRIG_INT   0x00000080

Trigger on analogy-internal signal N.

#define TRIG_OTHER   0x00000100

Driver defined trigger.

#define TRIG_WAKE_EOS   0x0020

Wake up on end-of-scan.

#define TRIG_ROUND_MASK   0x00030000

Trigger not implemented yet.

#define TRIG_ROUND_NEAREST   0x00000000

Trigger not implemented yet.

#define TRIG_ROUND_DOWN   0x00010000

Trigger not implemented yet.

#define TRIG_ROUND_UP   0x00020000

Trigger not implemented yet.

#define TRIG_ROUND_UP_NEXT   0x00030000

Trigger not implemented yet.

Channel macros

Specific precompilation macros and constants useful for the channels descriptors tab located in the command structure

#define CHAN(a)   ((a) & 0xffff)

Channel indication macro.

#define RNG(a)   (((a) & 0xff) << 16)

Range definition macro.

#define AREF(a)   (((a) & 0xf) << 24)

Reference definition macro.

#define FLAGS(a)   ((a) & CR_FLAGS_MASK)

Flags definition macro.

#define PACK(a, b, c)   (CHAN(a) | RNG(b) | AREF(c))

Channel + range + reference definition macro.

#define PACK_FLAGS(a, b, c, d)   (CHAN(a) | RNG(b) | AREF(c) | FLAGS(d))

Channel + range + reference + flags definition macro.

#define AREF_GROUND   0x00

Analog reference is analog ground.

#define AREF_COMMON   0x01

Analog reference is analog common.

#define AREF_DIFF   0x02

Analog reference is differential.

#define AREF_OTHER   0x03

Analog reference is undefined.


Data Structures
struct	a4l_cmd_desc
	Structure describing the asynchronous instruction. More...
Defines
ANALOGY_CMD_xxx
Common command flags definitions
#define	A4L_CMD_SIMUL 0x1
	Do not execute the command, just check it.
#define	A4L_CMD_BULK 0x2
	Perform data recovery / transmission in bulk mode.
#define	A4L_CMD_WRITE 0x4
	Perform a command which will write data to the device.
TRIG_xxx
Command triggers flags definitions
#define	TRIG_NONE 0x00000001
	Never trigger.
#define	TRIG_NOW 0x00000002
	Trigger now + N ns.
#define	TRIG_FOLLOW 0x00000004
	Trigger on next lower level trig.
#define	TRIG_TIME 0x00000008
	Trigger at time N ns.
#define	TRIG_TIMER 0x00000010
	Trigger at rate N ns.
#define	TRIG_COUNT 0x00000020
	Trigger when count reaches N.
#define	TRIG_EXT 0x00000040
	Trigger on external signal N.
#define	TRIG_INT 0x00000080
	Trigger on analogy-internal signal N.
#define	TRIG_OTHER 0x00000100
	Driver defined trigger.
#define	TRIG_WAKE_EOS 0x0020
	Wake up on end-of-scan.
#define	TRIG_ROUND_MASK 0x00030000
	Trigger not implemented yet.
#define	TRIG_ROUND_NEAREST 0x00000000
	Trigger not implemented yet.
#define	TRIG_ROUND_DOWN 0x00010000
	Trigger not implemented yet.
#define	TRIG_ROUND_UP 0x00020000
	Trigger not implemented yet.
#define	TRIG_ROUND_UP_NEXT 0x00030000
	Trigger not implemented yet.
Channel macros
Specific precompilation macros and constants useful for the channels descriptors tab located in the command structure
#define	CHAN(a) ((a) & 0xffff)
	Channel indication macro.
#define	RNG(a) (((a) & 0xff) << 16)
	Range definition macro.
#define	AREF(a) (((a) & 0xf) << 24)
	Reference definition macro.
#define	FLAGS(a) ((a) & CR_FLAGS_MASK)
	Flags definition macro.
#define	PACK(a, b, c) (CHAN(a) \| RNG(b) \| AREF(c))
	Channel + range + reference definition macro.
#define	PACK_FLAGS(a, b, c, d) (CHAN(a) \| RNG(b) \| AREF(c) \| FLAGS(d))
	Channel + range + reference + flags definition macro.
#define	AREF_GROUND 0x00
	Analog reference is analog ground.
#define	AREF_COMMON 0x01
	Analog reference is analog common.
#define	AREF_DIFF 0x02
	Analog reference is differential.
#define	AREF_OTHER 0x03
	Analog reference is undefined.
