include/analogy/subdevice.h File Reference

Detailed Description

Analogy for Linux, subdevice related features.

Xenomai is free software; you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation; either version 2 of the License, or (at your option) any later version.

Xenomai is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details.

You should have received a copy of the GNU General Public License along with Xenomai; if not, write to the Free Software Foundation, Inc., 59 Temple Place - Suite 330, Boston, MA 02111-1307, USA.

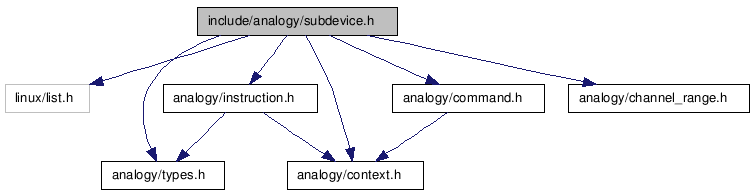

Include dependency graph for subdevice.h:

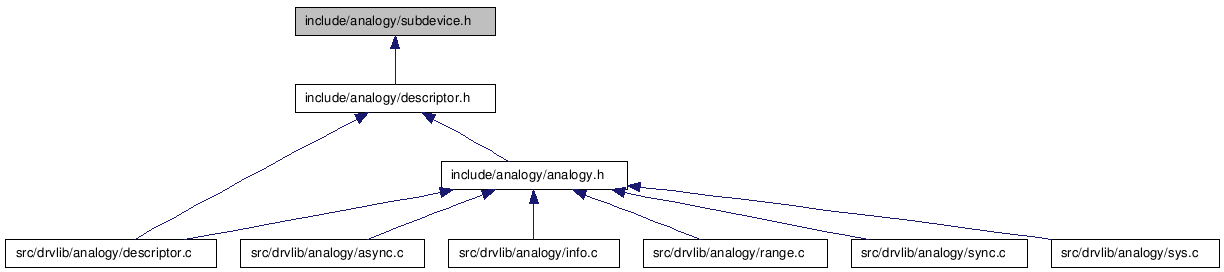

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures

struct a4l_subdevice

Structure describing the subdevice. More...

Defines

Subdevices types

Flags to define the subdevice type

#define A4L_SUBD_UNUSED   (A4L_SUBD_MASK_SPECIAL|0x1)

Unused subdevice.

#define A4L_SUBD_AI   (A4L_SUBD_MASK_READ|0x2)

Analog input subdevice.

#define A4L_SUBD_AO   (A4L_SUBD_MASK_WRITE|0x4)

Analog output subdevice.

#define A4L_SUBD_DI   (A4L_SUBD_MASK_READ|0x8)

Digital input subdevice.

#define A4L_SUBD_DO   (A4L_SUBD_MASK_WRITE|0x10)

Digital output subdevice.

#define A4L_SUBD_DIO   (A4L_SUBD_MASK_SPECIAL|0x20)

Digital input/output subdevice.

#define A4L_SUBD_COUNTER   (A4L_SUBD_MASK_SPECIAL|0x40)

Counter subdevice.

#define A4L_SUBD_TIMER   (A4L_SUBD_MASK_SPECIAL|0x80)

Timer subdevice.

#define A4L_SUBD_MEMORY   (A4L_SUBD_MASK_SPECIAL|0x100)

Memory, EEPROM, DPRAM.

#define A4L_SUBD_CALIB   (A4L_SUBD_MASK_SPECIAL|0x200)

Calibration subdevice DACs.

#define A4L_SUBD_PROC   (A4L_SUBD_MASK_SPECIAL|0x400)

Processor, DSP.

#define A4L_SUBD_SERIAL   (A4L_SUBD_MASK_SPECIAL|0x800)

Serial IO subdevice.

#define A4L_SUBD_TYPES

Mask which gathers all the types.

Subdevice features

Flags to define the subdevice's capabilities

#define A4L_SUBD_CMD   0x1000

The subdevice can handle command (i.e it can perform asynchronous acquisition).

#define A4L_SUBD_MMAP   0x8000

The subdevice support mmap operations (technically, any driver can do it; however, the developer might want that his driver must be accessed through read / write.


Data Structures
struct	a4l_subdevice
	Structure describing the subdevice. More...
Defines
Subdevices types
Flags to define the subdevice type
#define	A4L_SUBD_UNUSED (A4L_SUBD_MASK_SPECIAL\|0x1)
	Unused subdevice.
#define	A4L_SUBD_AI (A4L_SUBD_MASK_READ\|0x2)
	Analog input subdevice.
#define	A4L_SUBD_AO (A4L_SUBD_MASK_WRITE\|0x4)
	Analog output subdevice.
#define	A4L_SUBD_DI (A4L_SUBD_MASK_READ\|0x8)
	Digital input subdevice.
#define	A4L_SUBD_DO (A4L_SUBD_MASK_WRITE\|0x10)
	Digital output subdevice.
#define	A4L_SUBD_DIO (A4L_SUBD_MASK_SPECIAL\|0x20)
	Digital input/output subdevice.
#define	A4L_SUBD_COUNTER (A4L_SUBD_MASK_SPECIAL\|0x40)
	Counter subdevice.
#define	A4L_SUBD_TIMER (A4L_SUBD_MASK_SPECIAL\|0x80)
	Timer subdevice.
#define	A4L_SUBD_MEMORY (A4L_SUBD_MASK_SPECIAL\|0x100)
	Memory, EEPROM, DPRAM.
#define	A4L_SUBD_CALIB (A4L_SUBD_MASK_SPECIAL\|0x200)
	Calibration subdevice DACs.
#define	A4L_SUBD_PROC (A4L_SUBD_MASK_SPECIAL\|0x400)
	Processor, DSP.
#define	A4L_SUBD_SERIAL (A4L_SUBD_MASK_SPECIAL\|0x800)
	Serial IO subdevice.
#define	A4L_SUBD_TYPES
	Mask which gathers all the types.
Subdevice features
Flags to define the subdevice's capabilities
#define	A4L_SUBD_CMD 0x1000
	The subdevice can handle command (i.e it can perform asynchronous acquisition).
#define	A4L_SUBD_MMAP 0x8000
	The subdevice support mmap operations (technically, any driver can do it; however, the developer might want that his driver must be accessed through read / write.
