Device Profiles
[Real-Time Driver Model]

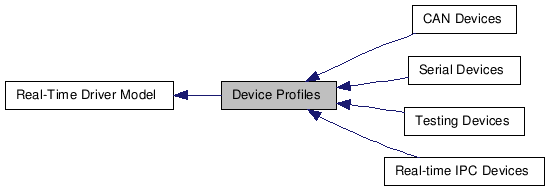

Collaboration diagram for Device Profiles:
|
Detailed Description
Device profiles define which operation handlers a driver of a certain class has to implement, which name or protocol it has to register, which IOCTLs it has to provide, and further details. Sub-classes can be defined in order to extend a device profile with more hardware-specific functions.
Modules | |
| CAN Devices | |
| Real-time IPC Devices | |
| Serial Devices | |
| Testing Devices | |
Data Structures | |
| struct | rtdm_device_info |
| Device information. More... | |
RTDM_CLASS_xxx | |
| Device classes | |
| #define | RTDM_CLASS_PARPORT 1 |
| #define | RTDM_CLASS_SERIAL 2 |
| #define | RTDM_CLASS_CAN 3 |
| #define | RTDM_CLASS_NETWORK 4 |
| #define | RTDM_CLASS_RTMAC 5 |
| #define | RTDM_CLASS_TESTING 6 |
| #define | RTDM_CLASS_RTIPC 7 |
| #define | RTDM_CLASS_EXPERIMENTAL 224 |
| #define | RTDM_CLASS_MAX 255 |
Device Naming | |
| Maximum length of device names (excluding the final null character) | |
| #define | RTDM_MAX_DEVNAME_LEN 31 |
RTDM_PURGE_xxx_BUFFER | |
| Flags selecting buffers to be purged | |
| #define | RTDM_PURGE_RX_BUFFER 0x0001 |
| #define | RTDM_PURGE_TX_BUFFER 0x0002 |
Common IOCTLs | |
| The following IOCTLs are common to all device profiles. | |
| #define | RTIOC_DEVICE_INFO _IOR(RTIOC_TYPE_COMMON, 0x00, struct rtdm_device_info) |
| Retrieve information about a device or socket. | |
| #define | RTIOC_PURGE _IOW(RTIOC_TYPE_COMMON, 0x10, int) |
| Purge internal device or socket buffers. | |
Typedefs | |
| typedef struct rtdm_device_info | rtdm_device_info_t |
| Device information. | |
Define Documentation
| #define RTIOC_DEVICE_INFO _IOR(RTIOC_TYPE_COMMON, 0x00, struct rtdm_device_info) |
Retrieve information about a device or socket.
- Parameters:
-
[out] arg Pointer to information buffer (struct rtdm_device_info)
| #define RTIOC_PURGE _IOW(RTIOC_TYPE_COMMON, 0x10, int) |
